The INTERSECT Federated Architecture for the Laboratory of the Future

Summary: The open Interconnected Science Ecosystem (INTERSECT) architecture connects scientific instruments and robot-controlled laboratories with computing and data resources at the edge, the Cloud or the high-performance computing center to enable autonomous experiments, self-driving laboratories, smart manufacturing, and artificial intelligence driven design, discovery and evaluation. Its a novel approach consists of science use case design patterns, a system of systems architecture, and a microservice architecture.

Connecting scientific instruments and robot-controlled laboratories with computing and data resources at the edge, the Cloud, or the high-performance computing (HPC) center enables autonomous experiments, self-driving laboratories, smart manufacturing, and artificial intelligence (AI) driven design, discovery and evaluation. The goal is to autonomously collect, transfer, store, process, curate, and archive scientific data and reduce human-in-the-loop needs for controlling, steering and designing experiments.

Figure 1: The INTERSECT Interconnected Science Ecosystem (INTERSECT) Initiative at Oak Ridge National Laboratory enables autonomous experiments, self-driving laboratories, smart manufacturing, and AI-driven design, discovery and evaluation

A federated instrument-to-edge-to-center hardware/software ecosystem needs to provide (a) uniform interfaces that leverage community and custom software; (b) pluggability that permits adaptable solutions, reuse of existing solutions, and digital twins for testing and evaluation; and (c) an open architecture to enable adoption by science facilities world-wide. The Interconnected Science Ecosystem (INTERSECT) architecture (Figure 1) enables science breakthroughs using intelligent networked systems, instruments, and facilities for the research laboratory of the future. It roughly follows the U.S. Department of Defense Architecture Framework (DoDAF) with its different architectural viewpoints, such as (i) operational scenarios, (ii) composition, interconnectivity and context, (iii) services and their capabilities, (iv) policies, standards and guidance, and (v) capability. The major difference is that the INTERSECT open architecture splits these views over three different components: (1) science use case design patterns, (2) a system of systems (SoS) architecture, and (3) a microservice architecture.

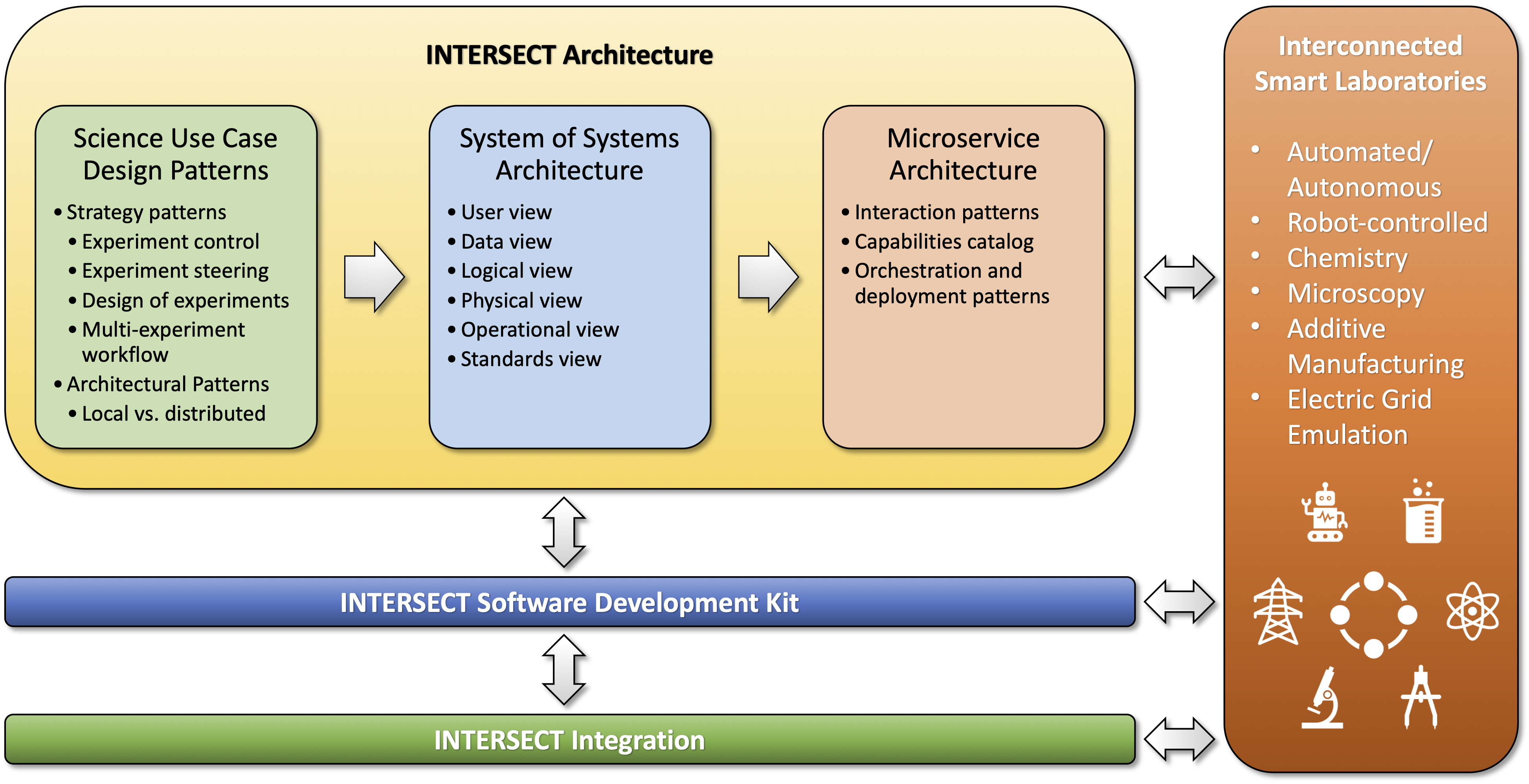

Figure 2: The components of the INTERSECT architecture in the context of the federated ecosystem for interconnected smart laboratories

Autonomous experiments, self-driving laboratories, smart manufacturing, and AI-driven design, discovery and evaluation are described as science use case design patterns that identify and abstract the involved hardware/software components and their interactions in terms of control, work and data flow. The basic template for a science use case design pattern is defined in a loop control problem paradigm. There are two classes in the catalog of science use case design patterns: strategic patterns and architectural patterns. Strategic patterns define high-level solution methods using experiment control architecture features at a very coarse granularity. Architectural patterns define more specific solution methods using hardware and software architecture features at a finer granularity. While the architectural patterns do inherit the features of certain parent strategic patterns, they also address additional problems that are not exposed at the high abstraction level of the strategic patterns. A specific solution may require pattern compositions.


Figure 3: Classification of INTERSECT science use case design patterns and their orthogonal relationship to the Integrated Research Infrastructure (IRI) science workflow execution patterns

The SoS architecture clarifies used terms, architectural elements, the interactions between them, and compliance. It decomposes the federated hardware/software ecosystem into smaller and less complex systems and components within these systems. It permits the development of individual systems and components with clearly defined interfaces, data formats and communication protocols. This not only separates concerns and functionality for reusability, but also promotes pluggability and extensibility with uniform protocols and system/component life cycles. Instead of developing individual monolithic solutions for each science use case, the SoS architecture provides one solution that can be easily adapted to different use cases using different compositions of systems. It offers operational and managerial independence of systems and of components within systems, geographical distribution with a physically distributed and federated ecosystem, emergent behavior based on the interplay between systems and components, and evolutionary development through pluggability and extensibility. Similar to the DoDAF, the SoS architecture offers different architectural viewpoints: a logical view, an operational view a user view, a data view, a physical view, and a standards view.

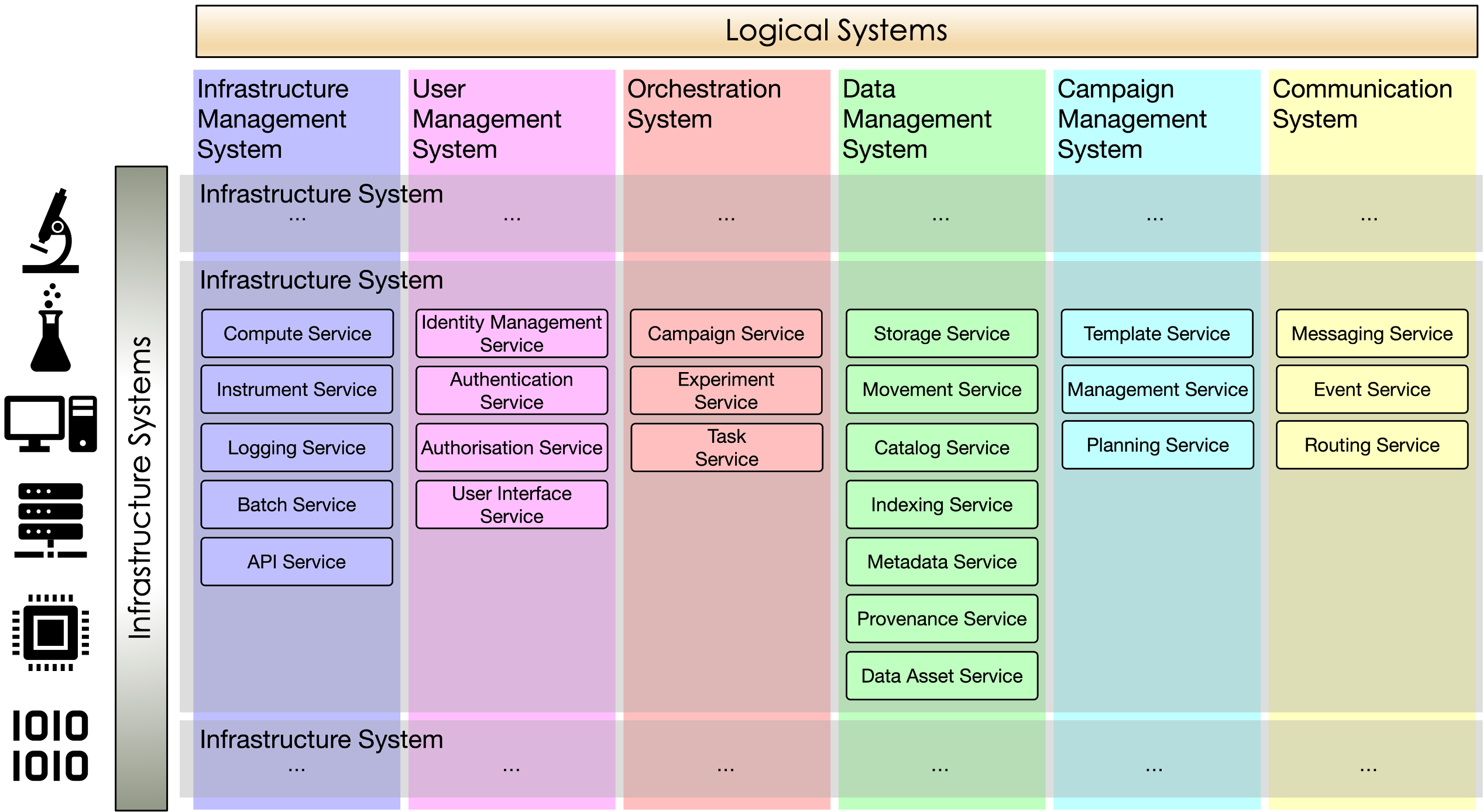

Figure 4: In the INTERSECT SoS architecture, infrastructure systems contain multiple logical systems and logical systems span aross multiple infrastructure systems, providing services

The microservice architecture maps the science use case design patterns to the SoS architecture with loosely coupled microservices and uniform interfaces. It defines microservice interaction patterns and provides a classification of microservices that includes microservice capabilities for infrastructure and experiment services. The microservices are defined to facilitate composition within the federated SoS Architecture. Infrastructure microservices represent common service functionality and capabilities, such as data management, computing, messaging, and workflow orchestration that are likely to be generally useful across many science ecosystems without the need for customization. Experiment-specific microservices, on the other hand, represent services whose implementation may require detailed application knowledge, such as experiment planning or steering services that require knowledge of experiment-specific control parameters and their associated constraints. The microservice architecture also clarifies orchestration and deployment of microservices.


Figure 5: The classification of INTERSECT microservices with capabilities for infrastructure and experiment services.

The INTERSECT federated architecture is currently used by a number of research experiments and laboratories. One example is autonomous additive manufacturing, a 3D metal printing process with a thermomechanical simulation in a live feedback loop to control the residual stress in a printed part to address a grand challenge — building parts that are ready and safe to use immediately (i.e., “born qualified”).

Figure 6: The INTERSECT autonomous additive manufacturing experiment uses a thermomechanical simulation in a live feedback loop to control the residual stress in a printed part
